ID # 42784450

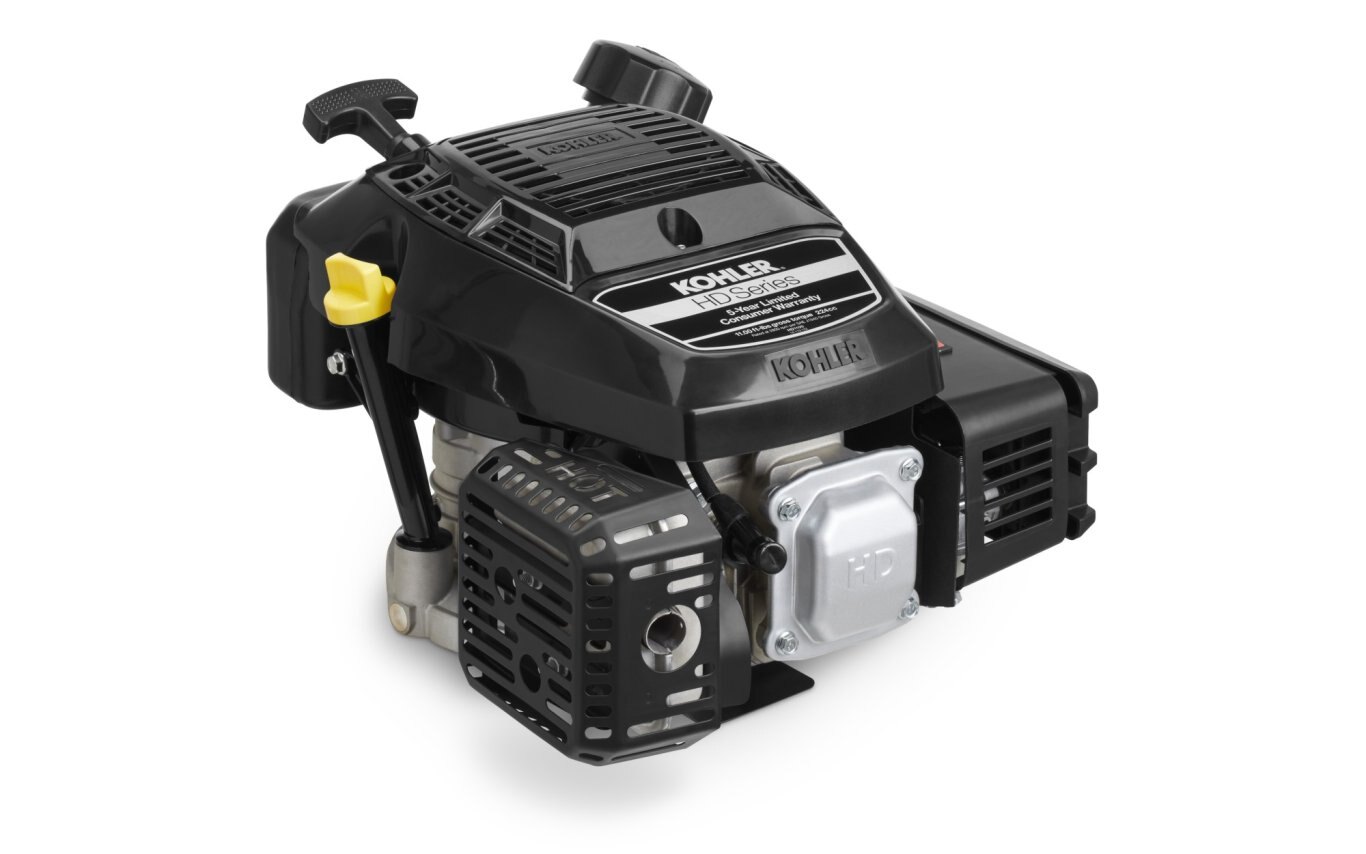

Kohler Command/HD Series HD950
Call for Price
Overview
Specifications
features
engine uses
literture
Documents
Based on commercial engine designs, HD Series engines boast cast-iron cylinder liners — instead of aluminum — for added durability and engine protection.
Model
HD950
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kohler
Bore
73 (2.9) mm (in)
Dry Weight
15.2 (33.5) kg (lbs)
Engine Type
Commercial
Lubrication
Splash
Displacement
200 (12.2) cm3 (in3)
Oil Capacity
0.59 (0.625) L (US qt)
Maximum Torque
12.9 (9.5)@2600RPM Nm (lb-ft)
Stroke In (mm)
48 (1.9) mm (in)
Compression Ratio
8.9:1
Dimensions L X W X H
396x360x281 (15.6x14.1x11.1) mm (in)
Feature
- 2x longer engine life certified by KOHLER*
- Enjoy effortless, no-prime starts thanks to our Smart-Choke™ and Easy-Pull™ technology
- Easy pours and less spilling with Accu-Fill® fuel tank's 45% larger angled fuel neck
- Consistent-Cut™ technology maintains engine speed for a cleaner turf cut, even in tough mowing conditions
- Less time spent on maintenance with longer oil and air filter maintenance intervals
ENGINE USES
Equipment Types
This engine powers the following equipments
- Tiller
- Pressure Washer
- String Trimmer
- Walk-Behind Mower
Command_HD_Series_REHLKO_web.pdf Model
HD950
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kohler
Quantity
0
Bore
73 (2.9) mm (in)
Dry Weight
15.2 (33.5) kg (lbs)
Engine Type
Commercial
